SPECIFICATION

Product Introduction

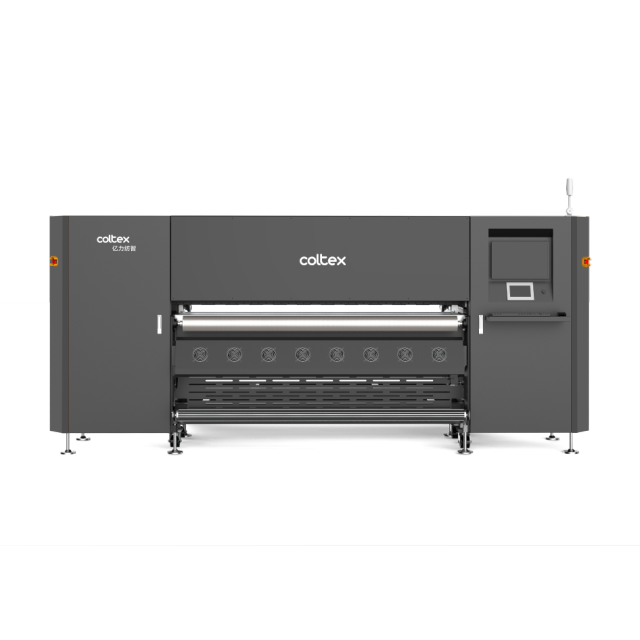

Name: S8000-FDP-KYRC-16H(A7)（FlexDigitalPrint）
Brand: Yilijet/Xenons Inkjet Printing Solutions
Availability: InStock
Rating: 5 (1 reviews)

S8000-KYRC-16H High-Speed Sublimation Printer

Designed for mass digital printing of home textiles, apparel and decorative fabrics. Equipped with Kyocera EX600RC industrial printheads for multi-color printing solutions, the machine comes with a standard 2000mm print width and delivers a maximum output of 1360㎡/h.

Fitted with imported low-noise dual THK linear guides, maglev motors, magnetic grid drive system, framed straight-slot suction printing platform, triple printhead protection and dual-layer circulating infrared drying. It adopts 10L/15L large-capacity ink tanks and automatic negative-pressure ink supply system, supporting raw rolls up to Φ1000mm for non-stop 24-hour stable mass production. Featuring stable operation, high precision and strong productivity, it serves as core production equipment for large-scale textile printing manufacturers.

Core Advantages

✅ High-end Multi-Printhead Configuration, Max 1360㎡/h Ultra-High Output

Configured with 16 Kyocera EX600RC printheads to reach top productivity of 1360㎡/h, efficiently handling bulk orders and peak-season production demands.

✅ 2000mm/2200mm Printing Width for One-Pass Home Textile Production

Standard 2-meter working width perfectly fits wide-format fabrics such as curtains, sofa fabrics and bedding without splicing, improving finished product quality and production efficiency.

✅ Maglev Drive for Stable & Low-Noise High-Speed Operation

Combination of low-noise dual THK guides, maglev motors and magnetic grid positioning system eliminates vibration and reduces noise at high speed for precise printing and extended service life.

✅ Grade 3.0 Honeycomb Uniform Suction for Wrinkle-Free Fabric Feeding

Full-area honeycomb uniform suction suits 22–110g sublimation transfer paper to avoid wrinkling or deviation and guarantee consistent printing effect.

✅ Three-Level Printhead Protection to Cut Spare Part Cost

Three-way anti-collision design plus base anti-scratch and laser height detection fully safeguard printheads against scratches and lower maintenance expenses.

✅ 10L/15L Large Ink Tanks with Automatic Negative-Pressure Ink Feed

Large-volume ink storage paired with precise automatic negative-pressure control ensures steady uninterrupted ink supply for round-the-clock continuous production.

✅ Dual-Circulation Infrared Hot-Air Drying for Instant Dry After Printing

Front & rear dual-sided hot-air drying provides even heating to prevent ink bleeding and sticking at high printing speed and boost throughput.

✅ Large Roll Loading & Unloading to Minimize Production Downtime

Max feeding roll diameter Φ1000mm and take-up roll Φ450mm with automatic constant tension control greatly improves continuous production efficiency by reducing roll change stops.

✅ Intelligent Automatic Design for Easy Operation & Maintenance

Integrated automatic head cleaning & capping, intelligent ink supply and production data management simplify operation and cut labor & maintenance costs.

Technical Specifications

Model: S8000-KYRC-16H

Printhead: Kyocera Industrial Printhead

Printhead Quantity: 16pcs

Max Printing Speed: 1360㎡/h

Print Width: 2000mm/2200mm

Print Media: Sublimation Transfer Paper

Ink Type: Sublimation Ink

Available Colors: C, M, Y, K, LC, LM, LK, Grey, Fluorescent Red, Fluorescent Yellow

Ink Tank Capacity: 10L / 15L

Ink Supply: Automatic Feeding with Automatic Negative Pressure Control

File Format: TIFF / JPG / EPS / PDF; RGB / CMYK Compatible

Print Platform: Framed Straight-Slot Suction Platform

Drive System: Imported Low-Noise Dual THK Linear Guides, Maglev Motor, Magnetic Grid System

Head Maintenance: Integrated Automatic Cleaning & Capping

Roll Handling: Max Feed Roll Φ1000mm; Max Take-up Roll Φ500mm

Drying System: Dual Heating with Circulating Infrared Hot Air

Application Fields

Curtain & Home Textile Printing | Bedding Set Printing | Sportswear Printing | Swimsuit & Yoga Wear Printing

Outdoor Flag & Banner | Decorative Fabric Printing | Large Digital Printing Factories | 24h Industrial Mass Production Lines
